HPT 2800

Road HPT Boat Trailer Series 2800Hydraulic Road Boat Trailer - HPT Series 2800






HOSTAR Model HPT 2800 Hydraulic Boat Trailer, configured with the following equipment and/or specifications:

• To handle power boats and shoal draft sailboats to 29 feet (highway)
• Overall trailer length of 30 feet
• Overall trailer width of 8 feet 3 inches
• Capacity of 10,000 lbs. over the road, 13,000 lbs. in the yard
• 6" x 6" steel square tube main frame
• Hydraulics:
    * Two rear hydraulic arms with offset reversible pads
    * Front hydraulic cylinder for fore and aft leveling
    * Manual hydraulic control valves
    * 12VDC electric hydraulic power unit
    * Pilot operated double-locking valves on all cylinders
• Rocking beam suspension
• Adjustable, movable and reversible forward cross beam
• Two-position ratchet adjustable swing-out rear cross beam
• Four 225/75R15 tires, 8 ply rating (o.d. 28", 2540 lbs. cap. ea.)
• Electric brakes on all wheels with D.O.T. wiring and breakaway switch
• Flexible fenders
• Two screw pad stabilizers with sockets and T-pins, mountable to frame
• Stainless steel T-pins and hardware
• Extra-bright LED submersible lighting system
• Hydraulically operated pintle draw bar w/safety chains
• Two parking stands
• Expanded metal basket at trailer front
• Finish: Frame sandblasted to white steel; finished with two coats high-build epoxy primer with hardener,
             three coats high performance acrylic urethane with hardener - choice of color

Production Time: Twelve to fourteen weeks from start of construction

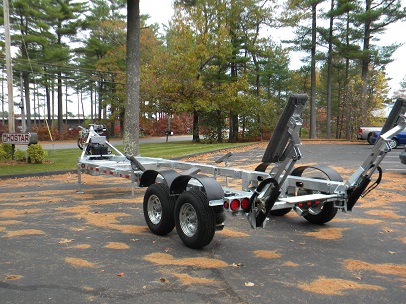

Road HPT Boat Trailer Series 2800

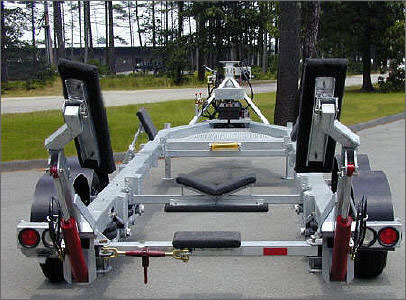

Road HPT Boat Trailer Series 2800



Available Options


• Galvanized frame, arms, cross beams
• Galvanized arms, arm inserts, pad brackets, parking stands only
• 12 VDC air compressor w/cover, mounted on mast
• Four-wheel air-ride suspension with air storage tank
• Remote control with pendant operation, priced per hydraulic function
• Remote control with pendant operation, priced per air function
• Wireless remote operation in lieu of pendant operation
• Electric/hydraulic brakes
• Corrosion-resistant disc brake package
• Inside frame lights, priced per pair (galvanized frame only)
• 9.5K electric planetary gear winch on telescoping mast mount
• Extra stabilizers with sockets and T-pins (set of 2)
• Frame extended, priced per foot
• Spare tire and wheel
• Four 235/85R16 LRE tires (hwy. cap. 3,042 lbs. each) w/16" wheels
• Spare 235/85R16 LRE tire and wheel
• Fixed gooseneck for fifth-wheel operation
• Hydraulically articulating gooseneck for fifth-wheel operation
• Forward hydraulic arms, extendable
• Two drop beams for sailboat keels
