HST 2800

HOSTAR Model HST2800 Hydraulic Boat Trailer, configured with the following equipment and/or specifications:

• To handle power boats and sailboats to 28 feet
• Overall trailer length of 28 to 30 feet
• Overall trailer width of 8 feet
• Capacity of 10,000 lbs. over the road, 13,000 lbs. in the yard
• 6" x 6" steel square tube main frame
• Hydraulics:

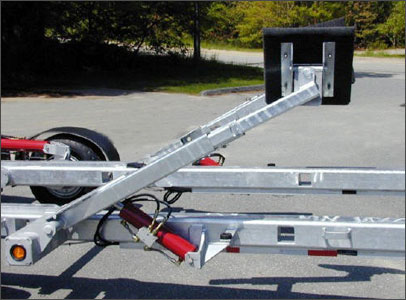

    * Four fully adjustable hydraulic arms for up to 6' draft
    * Hydraulic raising and lowering of trailer main frame
    * Hydraulically operated front landing wheels
    * Hydraulic front cylinder for fore and aft leveling
    * Solenoid-actuated remote control with handheld box and walk-around cable
    * 12VDC electric hydraulic power unit
    * Pilot-operated double-locking valves on all cylinders
• Two slide-through removable cross beams
• Cross beam pockets through and underneath the frame
• Hydraulic walking beam suspension
• Four 225/75R15 tires, 8 ply rating
• Electric brakes on all wheels with D.O.T. wiring and breakaway switch
• Flexible fenders
• Extra-bright LED submersible lighting system
• Stainless steel T-pins and hardware
• Hydraulically operated pintle ring draw bar with safety chains
• Expanded metal basket at trailer front
• Finish: Frame sandblasted to white steel; finished with two coats high-build epoxy primer with hardener,
             three coats high performance acrylic urethane with hardener - choice of color

Production Time: Twelve to fourteen weeks from start of construction
