HPT 4000 Y

HPT 4000 Y

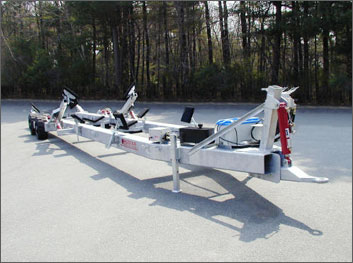

HOSTAR Model HPT4000Y Hydraulic Boat Trailer for yard use, configured with the following equipment and/or specifications:

• To handle power boats and shoal draft sailboats to 41 feet
• Overall trailer length of 38 feet
• Overall trailer width of 9 feet (wider or narrower as desired)
• Capacity of 40,000 lbs. in the yard
• 8" x 8" x 3/8" steel square tube main frame
• Hydraulics:
    * Two pivoting rear hydraulic arms with extendable pads
    * Two forward extendable hydraulic arms
    * Hydraulic front end for fore and aft leveling/lifting
    * Hydraulic raising and lowering of frame (each side)
    * Manual hydraulic control valves
    * 12VDC electric hydraulic power unit
    * Pilot operated double-locking valves on all cylinders
• Outboard hydraulic walking beam suspension
• Two movable and adjustable forward cross beams
• Ratchet-adjustable two-position swing-out rear cross beam
• Four low profile high flotation 28 x 12.5 x 15 industrial yard tires
• Two screw pad stabilizers with sockets and T-pins, mountable on inside and outside of frame
• Stainless steel T-pins and hardware
• Front mast with hydraulically operated pintle ring draw bar
• Expanded metal basket at trailer front
• Two parking stands
• Power connection to tow vehicle
• Finish: Frame sandblasted to white steel; finished with two coats high-build epoxy primer with hardener,
             three coats high performance acrylic urethane with hardener - choice of color

Production Time: Twelve to fourteen weeks after start of construction







Available Options


• Galvanized frame, arms, cross beams, parking stands
• Galvanized arms, cross beams, parking stands only
• Stainless steel arm pivots
• Frame extended, priced per foot
• Battery charger, mounted, in lieu tow vehicle connection
• 12.5K electric planetary gear winch on telescoping mast mount
• Inside frame ights, priced per pair (galvanized frame only)
• Solid tires in lieu of pneumatic tires
• Remote control with pendant operation, priced per hydraulic function
• Wireless remote operation in lieu of pendant operation
• Fixed gooseneck for fifth-wheel operation
• Hydraulically articulating gooseneck for fifth-wheel operation
• Additional V-pad cross beam
