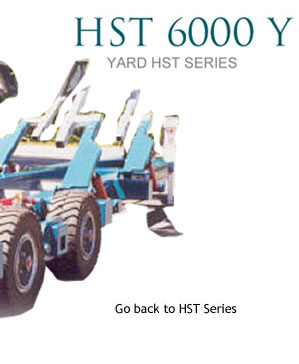

HST 6000 Y

Hostar Yard Trailer Series 6000 YHST Hydraulic Boat Trailer Series 6000 YHST Boat Yard Trailer Series 6000 Y






HOSTAR Model HST6000Y Hydraulic Boat Trailer for yard use, configured with the following equipment and specifications:

• To handle powerboats to 55 feet, sailboats to 63 feet
• Overall trailer length of 47 feet
• Overall trailer width of 10 feet
• Yard capacity of 70,000 lbs.
• 12" x 12quot; x 1/2" structural steel tubing main frame
• Frame sealed, pressure-tested for air tightness to prevent corrosion
• Hydraulics

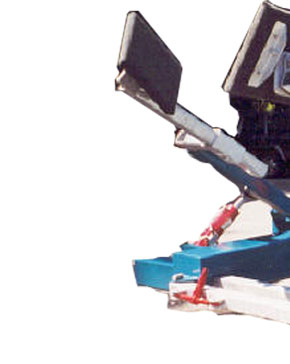

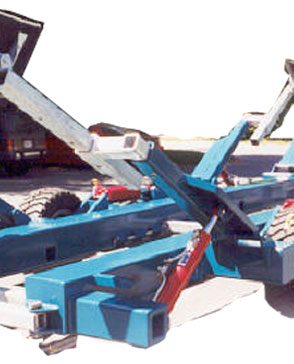

    * Six fully adjustable hydraulic arms to handle up to 8' draft; forward-facing rear arms, inward-canting forward arms
    * Hydraulic raising and lowering of each side of main frame
    * Manual hydraulic control valves
    * 12VDC electric hydraulic power unit
    * Pilot operated double-locking valves on all cylinders
• Two 4-DM deep cycle marine batteries
• Battery charger or power connection to tow vehicle
• Six slide-through removable cross beams
• Cross beam pockets through frame
• Strap hangers with straps for sailboat keels
• Outboard walking beam (hydraulic) suspension (frame lowers to ground)
• Tandem axles with four Dexter Heavy Duty Series axles
• Eight low profile high flotation 32 x 12.1 x 15 industrial yard tires
• Pintle ring for connection to forklift or front loader
• Stainless steel T-pins and hardware
• Expanded metal basket at front of trailer
• Two parking stands
• Finish: Entire unit sandblasted to white steel; finished with two coats high-build epoxy primer with hardener, three coats high performance acrylic urethane with hardener - choice of color

Production Time: Fourteen to sixteen weeks from start of construction

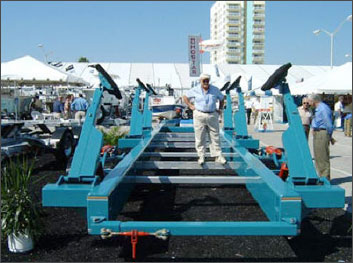

HST 6000 Y Hydraulic Boat Trailer

Available Options


• Submersible option: Hydraulic landing wheels, front mast with hydraulic cylinder to draw bar, solenoid actuated remote control with hand-held box and walk-around cable, watertight housing of solenoids & electrical connections
• Galvanized arms (6), cross beams, parking stands
• Galvanized arms (6), parking stands
• Stainless steel arm pivots
• Solid tires in lieu of pneumatic tires
• Remote control with pendant operation, priced per hydraulic functions
• Wireless remote control and pendant operation
• Fixed gooseneck for fifth wheel operation
• Hydraulically articulating gooseneck for fifth wheel operation
• Reinforced aluminum cross beams, priced per cross beam
• Hydraulic front end parking jack
















HOSTAR Marine Transport Systems, Inc
One Kendrick Road Wareham, MA 02571
(800) 783-9303
